BrewLedger

Brewery operations platform with local-first sync for mobile and desktop

Technologies: Vue 3, Vite, Capacitor, Dexie/IndexedDB, Express, SQLite, Stripe

BrewLedger is a local-first brewery operations platform that integrates inventory, batch tracking, taproom serving, and TTB compliance. The mobile app handles floor operations while the desktop console manages reporting and administration. This overview details the system architecture, including the client-server split, conflict resolution in the sync protocol, and the central role of the ledger.

Executive summary

BrewLedger consists of three components: a Capacitor mobile app for iOS and Android, a Vue desktop console, and an Express API backed by SQLite. The system uses an offline-first design where IndexedDB manages local data, and the server ensures multi-device consistency upon reconnection.

Inventory movements are recorded as append-only ledger entries. To ensure performance, the UI reads from a cached on-hand count derived from this log. The sync protocol pushes pending changes and pulls server updates. It resolves conflicts using timestamps and version-based optimistic locking.

The mobile and console applications serve distinct roles. The mobile app handles floor operations such as receiving, counting, and batch monitoring. The console manages administrative tasks, including TTB compliance reporting, billing, and the AI assistant. While both share a common sync service and repository layer, the console includes additional services for desktop-specific workflows.

Master systems network

The graph below is the full component map for BrewLedger: server routes, both clients, shared data entities, auth, and external integrations. Lines are undirected — each edge means two parts connect or integrate, not a strict call direction. The ledger sits at the center; almost every operational path reads from or writes to it.

flowchart LR subgraph server [Server] Express SQLite InitDB Migrations AuthRoutes BillingRoutes SyncRoute BreweryInfoAPI StripeWebhook AIChat end subgraph mobile [Mobile app] MobileApp MobileViews MobileRepos MobileAuthService MobileSyncService IndexedDB Dexie Capacitor Vue Vite end subgraph console [Console app] ConsoleApp ConsoleViews ConsoleRepos TTBFormService TTBPDFExportService BreweryInfoService ConsoleAuthService ConsoleSyncService Blog Landing end subgraph data [Data and entities] Ledger Items Locations Batches BatchLocations BatchReadings BatchAdditions BatchMilestones Recipes RecipeItems OnhandCache ParLevels VarianceEvents PackagingRuns MilestoneTemplates Categories end subgraph auth [Auth and session] Token Session RouterGuards end subgraph external [External] Stripe TTB end Express --- SQLite Express --- InitDB Express --- AuthRoutes Express --- BillingRoutes Express --- SyncRoute Express --- BreweryInfoAPI Express --- StripeWebhook Express --- AIChat InitDB --- Migrations AuthRoutes --- Token BillingRoutes --- Stripe StripeWebhook --- Stripe SyncRoute --- Ledger BreweryInfoAPI --- BreweryInfoService MobileApp --- MobileViews MobileApp --- Vue MobileApp --- Capacitor MobileViews --- MobileRepos MobileRepos --- MobileSyncService MobileRepos --- MobileAuthService MobileRepos --- IndexedDB IndexedDB --- Dexie Dexie --- Ledger Dexie --- Items Dexie --- Locations Dexie --- Batches Dexie --- BatchLocations Dexie --- OnhandCache MobileSyncService --- SyncRoute MobileAuthService --- AuthRoutes MobileAuthService --- Token Token --- Session Session --- RouterGuards Vue --- Vite ConsoleApp --- ConsoleViews ConsoleApp --- Landing ConsoleApp --- Blog ConsoleViews --- ConsoleRepos ConsoleRepos --- ConsoleSyncService ConsoleRepos --- ConsoleAuthService ConsoleRepos --- TTBFormService ConsoleRepos --- BreweryInfoService ConsoleSyncService --- SyncRoute ConsoleAuthService --- AuthRoutes ConsoleAuthService --- Token TTBFormService --- Ledger TTBFormService --- OnhandCache TTBFormService --- VarianceEvents TTBFormService --- PackagingRuns TTBFormService --- BatchMilestones TTBFormService --- TTBPDFExportService TTBPDFExportService --- TTB BreweryInfoService --- BreweryInfoAPI Ledger --- Items Ledger --- Locations Ledger --- Batches Ledger --- OnhandCache Items --- Categories Items --- ParLevels Locations --- ParLevels Batches --- BatchLocations Batches --- BatchReadings Batches --- BatchAdditions Batches --- BatchMilestones Batches --- PackagingRuns Batches --- MilestoneTemplates BatchLocations --- BatchReadings BatchLocations --- BatchAdditions Recipes --- RecipeItems Recipes --- Batches VarianceEvents --- Ledger PackagingRuns --- Ledger OnhandCache --- Ledger ParLevels --- Items ParLevels --- Locations

Interactive master network — pan horizontally on smaller screens. Open full-screen diagram

How the clusters interact

Server

Express is the hub. SyncRoute is the sync boundary — it validates and applies client changes to the authoritative ledger in SQLite. AuthRoutes issues tokens; BillingRoutes and StripeWebhook handle subscriptions. BreweryInfoAPI serves TTB header fields; AIChat powers the console assistant.

Mobile app

Floor workflows run in Vue views backed by repositories. Repositories read and write Dexie/IndexedDB locally, then queue changes for MobileSyncService. Capacitor wraps the same SPA for iOS and Android. Auth flows through MobileAuthService → server auth routes → token stored in session.

Console app

Same repository + sync pattern as mobile, plus desktop-only services. TTBFormService aggregates ledger, packaging, milestones, and variance data into Form 5130.9; TTBPDFExportService renders the PDF. Landing and blog are public-facing routes in the same app shell.

Data and entities

The ledger is append-only and references items, locations, and batches. OnhandCache is derived from ledger entries for fast UI reads. Batches fan out into vessel splits (BatchLocations), readings, additions, milestones, and packaging runs — each of which can produce ledger movements.

Auth and session

Tokens from the server become client sessions. Router guards on both platforms gate routes until auth resolves. Billing-gated features check subscription state after sync pulls the latest org record.

External

Stripe handles checkout, customer portal, and webhooks that update subscription status on the server (then sync to clients). TTB is the compliance output — not an API integration, but the target format for PDF export from console reporting.

Typical path: a brewer logs a receive or batch reading on mobile → repository writes a ledger entry and updates on-hand cache locally → sync pushes to SyncRoute → server persists to SQLite → other devices pull the change → console TTB services can aggregate the same ledger history into a compliance report. One write path, one source of truth, two client surfaces.

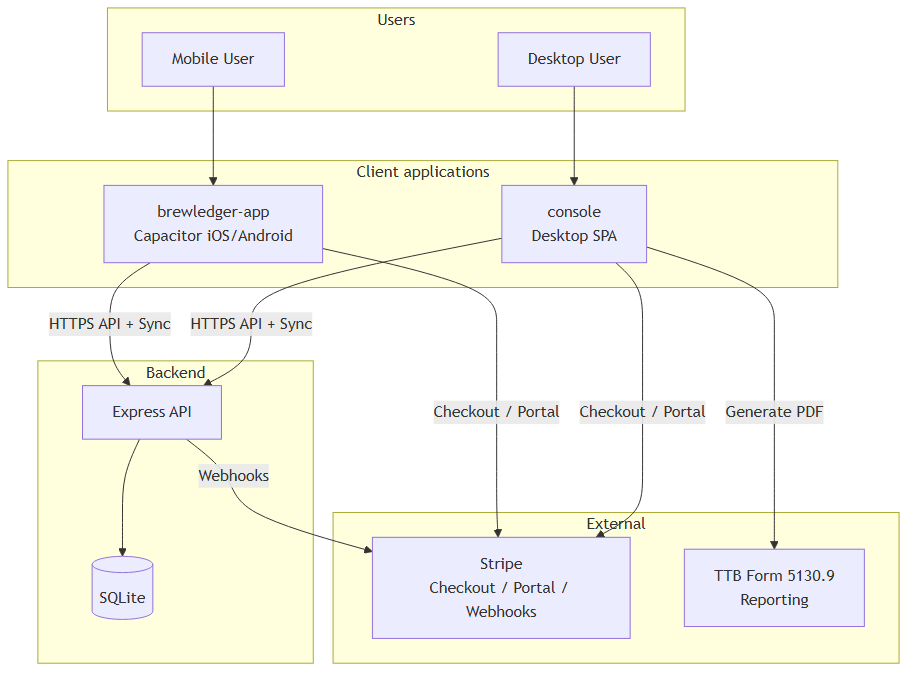

System context

Mobile and desktop users interact with separate client applications that connect to a single Express API. Stripe manages subscription billing and webhooks. TTB reporting is a primary output: the console aggregates ledger and location data to generate Form 5130.9 PDFs. The mobile app focuses on data capture to support this pipeline.

The codebase is organized into server and platform-specific directories. Both client platforms use a shared repository pattern where repositories interface with Dexie for local storage. Server-side validation mirrors client rules to maintain data integrity during synchronization.

Three surfaces, one backend

The system maintains a unified business logic across platforms. Both clients use the same API endpoints and entity schemas. The console provides management views and TTB services, while the mobile app uses Capacitor for native functionality and layouts optimized for one-handed use.

Area	Mobile (`brewledger-app`)	Console (`console`)
Primary use	Floor ops: receive, count, batch readings, serving	Management: reports, TTB PDF, bulk UI, analytics
Offline	Full workflow offline; sync on reconnect	Same local-first model via IndexedDB
TTB	Data capture: removals, milestones, location stages	`TTBFormService`, PDF export, brewery info API
Billing	Trial banner only; checkout moved to console	Stripe checkout, portal, subscription settings
Batch tracking	Original implementation; parity maintained	Full parity after console migration; desktop-optimized layout

Core features such as production tracking and TTB data paths are available on both platforms. Desktop-specific features, including CSV search and QuickBooks integration, are reserved for the console to leverage larger screen space and server-side tools.

Sync and conflict resolution

Designing the sync protocol was the most significant architectural challenge. Breweries often have unreliable connectivity. The system ensures that a cellar reading logged offline and a par level adjustment made on the console both synchronize correctly, preventing duplicate entries or inconsistent vessel states.

The synchronization cycle follows a push-then-pull model. Clients batch pending changes for server validation against business rules, such as vessel exclusivity and ledger invariants. Following a successful push, the client pulls updates made since the last synchronization. Successfully processed changes are then marked as synced locally.

Conflict resolution employs a last-write-wins strategy based on timestamps, supplemented by version-based optimistic locking. In cases where timestamps are insufficient, the server's state takes precedence to maintain organization-wide consistency.

Sync flow from user action through ledger entry, cache update, pending status, server validation, to other devices — Figure 2: Sync ↔ ledger ↔ cache — one user action propagates through local storage to other devices

Two integrity mechanisms ensure data reliability. A unique request ID on ledger entries prevents duplicate transactions during retry attempts. Additionally, soft-delete tombstones for batch locations ensure that vessel availability remains consistent across all devices after a synchronization pull.

User Action → Ledger Entry → Cache Update → sync_status pending
    ↓
Sync Push → Server validate and apply → Other devices pull and apply

Ledger system

Inventory is managed through an append-only transaction log to ensure a complete audit trail. Every movement—such as receiving malt or transferring stock—generates a ledger entry containing the quantity, item, and location. Reversals and corrections are recorded as new entries, preserving the full history of every transaction.

The system supports various transaction types, including receipts, consumption, and transfers. An on-hand cache, derived from the ledger, ensures that inventory views and par-level checks remain performant. This cache can be recomputed from the full ledger history if necessary.

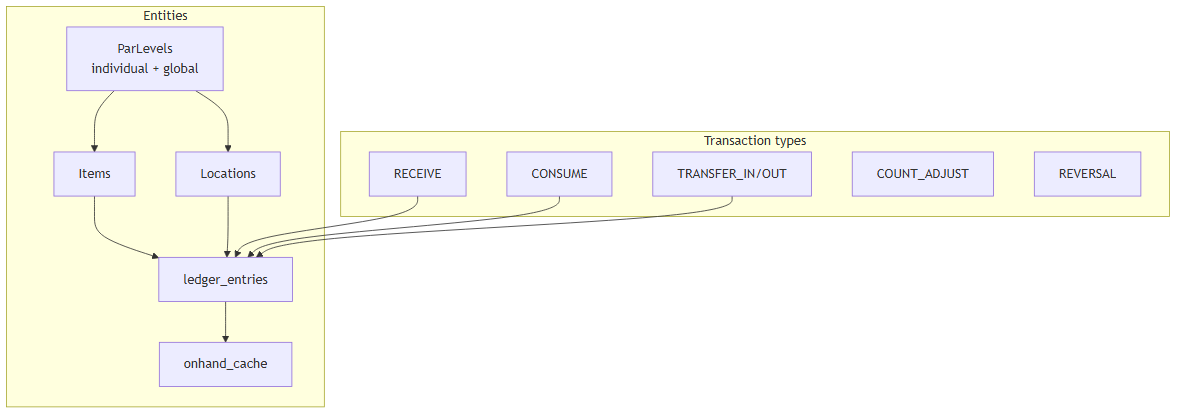

Inventory subsystem diagram showing items, locations, ledger entries, on-hand cache, par levels, and transaction types — Figure 3: Inventory and ledger — entities, transaction types, and the on-hand cache

Ledger entries capture item and location names at the time of the transaction. This ensures that historical records remain accurate even if entities are renamed, which is critical for audit trails and TTB compliance.

Par levels are monitored at both the location and global levels. The system tracks these minimums to provide a clear audit trail of all movements, from initial receipt to final packaging.

Production and batch tracking

Batch tracking supports complex workflows, including splitting a single batch across multiple vessels. Brewers can record readings and additions for each vessel, manage volume transfers, and log adjustments with specific reasons for loss or serving pulls.

Production milestones include knockout, pitch, and completion. The system enforces a 'production complete' step to ensure data integrity. Upon completion, a ledger entry moves the finished beer into inventory. This provides the necessary data for TTB reporting and serving views.

Serving tanks are managed with specific occupancy rules. Each tank is associated with a serving location that can hold one finished-beer item at a time. When a batch is moved to a serving tank, the system updates the ledger and vessel status to reflect the new availability across all devices.

TTB and compliance

The system architecture is designed to support TTB Form 5130.9 reporting. Locations are categorized by stages that map directly to form columns, and ledger entries include the metadata required for detailed line-item breakdowns.

The mobile app captures operational data on the floor, which the console then aggregates to generate TTB reports. The ledger serves as the authoritative data source. This ensures that compliance forms are accurate projections of actual brewery operations.

Integrations

BrewLedger integrates with several external systems through a unified sync and authentication layer:

Stripe: Manages subscriptions and billing through the console.
QuickBooks: Facilitates sales order creation and item mapping.
AWS SES: Handles transactional emails for authentication and account management.
AI assistant (console): Processes natural language commands to perform inventory and batch actions while maintaining data integrity through the sync layer.

Screenshots

Mobile on the floor, console at the desk — same org, same sync protocol.

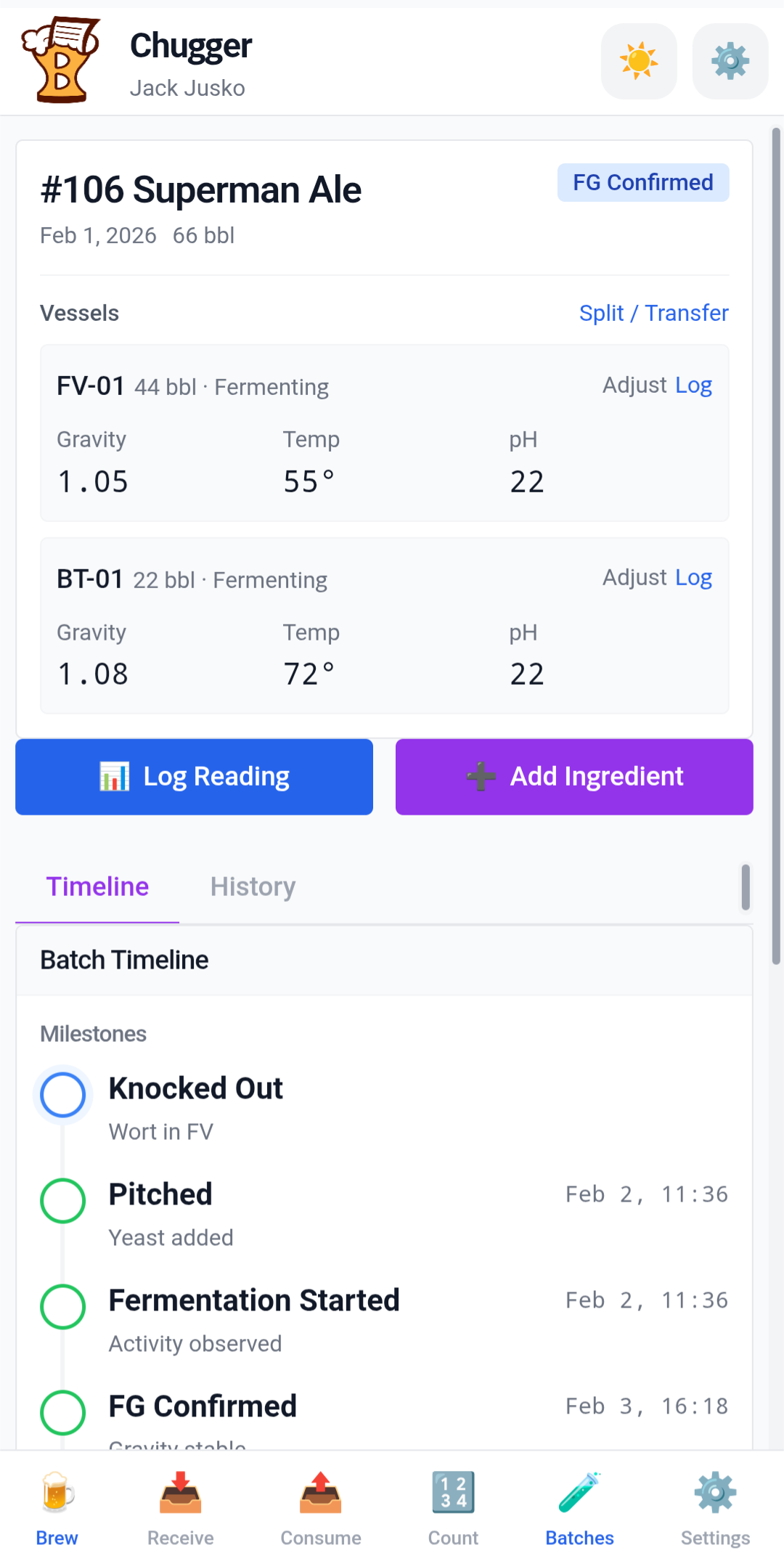

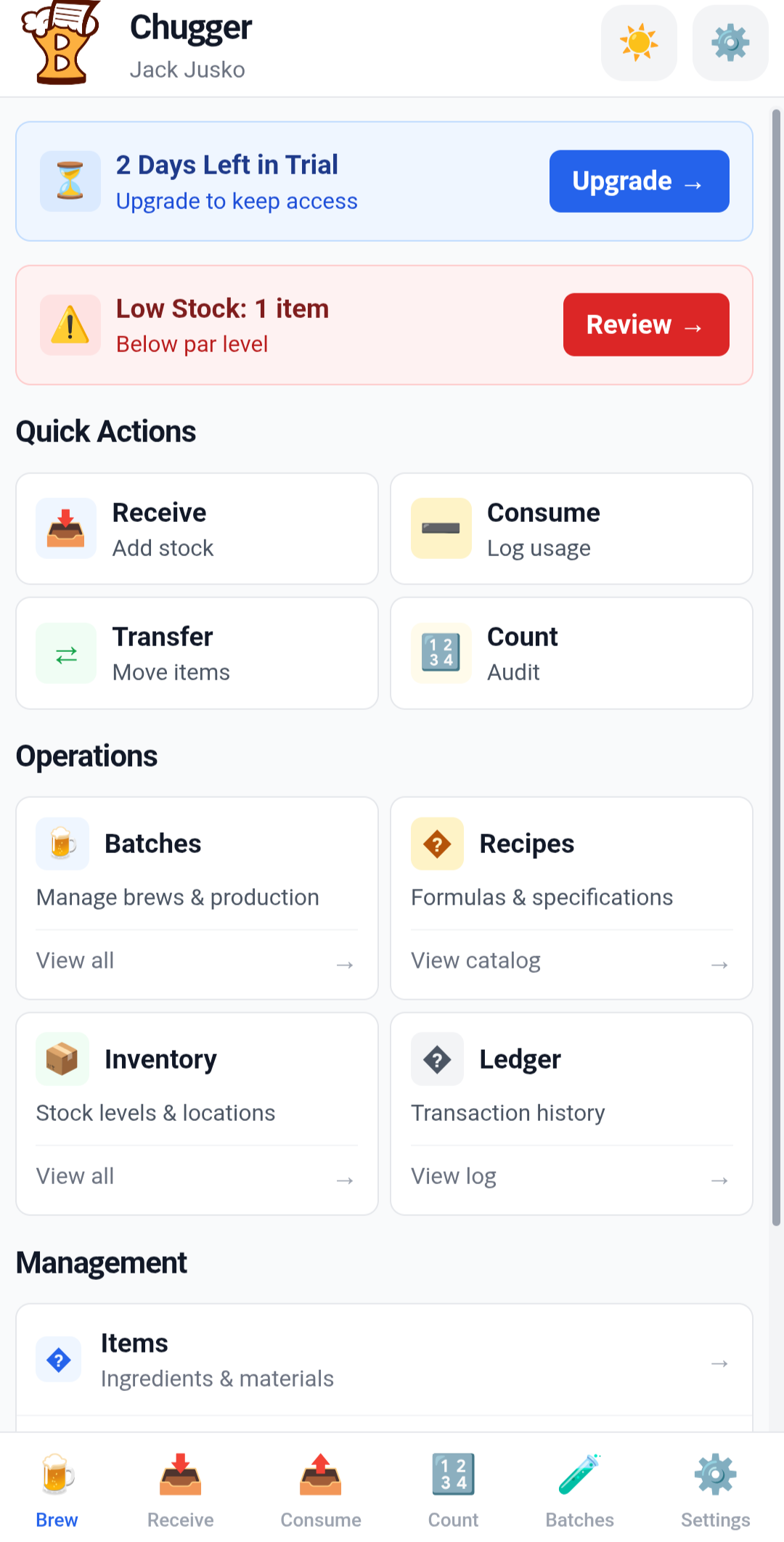

Mobile

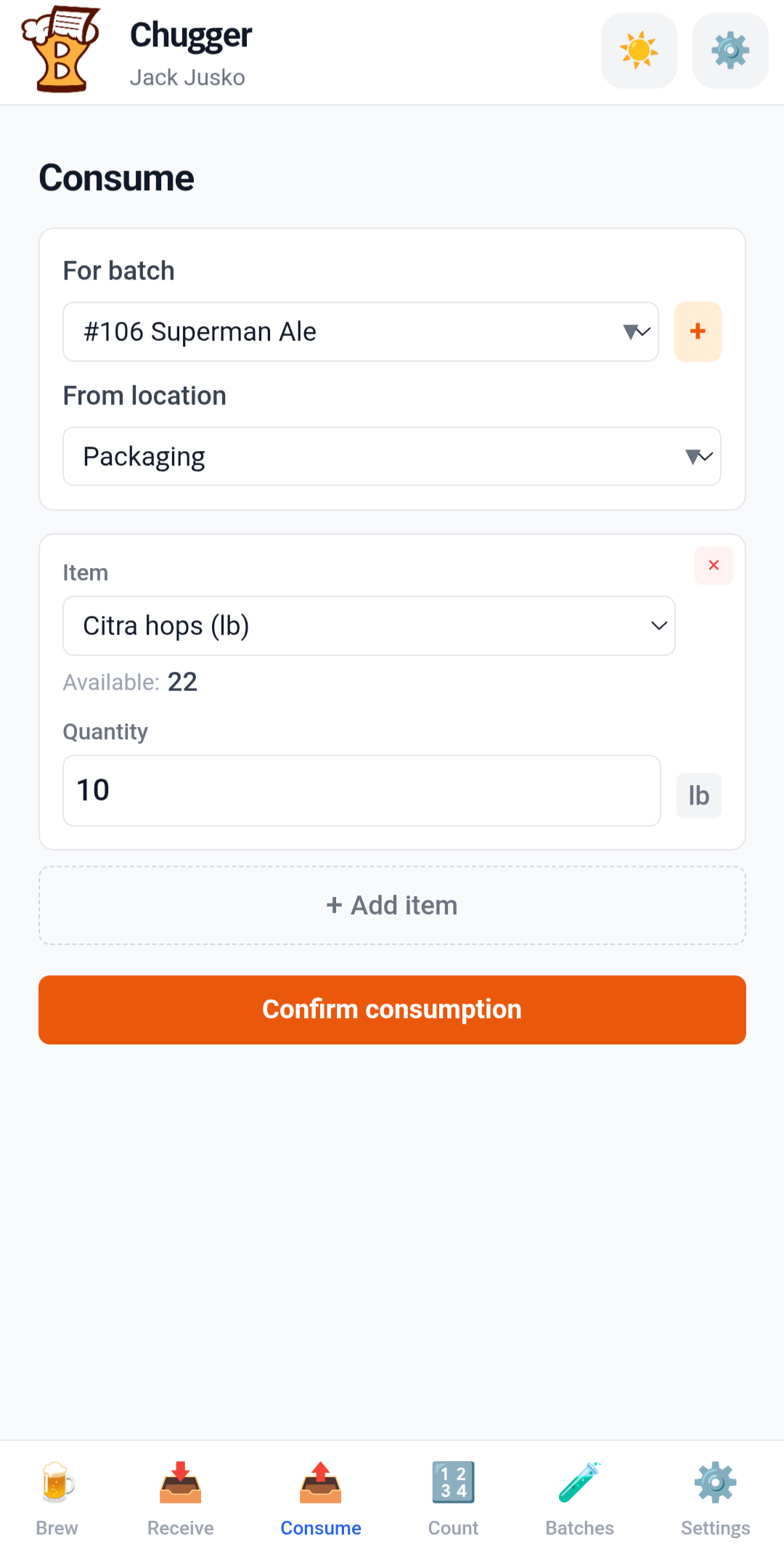

BrewLedger mobile inventory view — Inventory — on-hand counts driven by the ledger cache

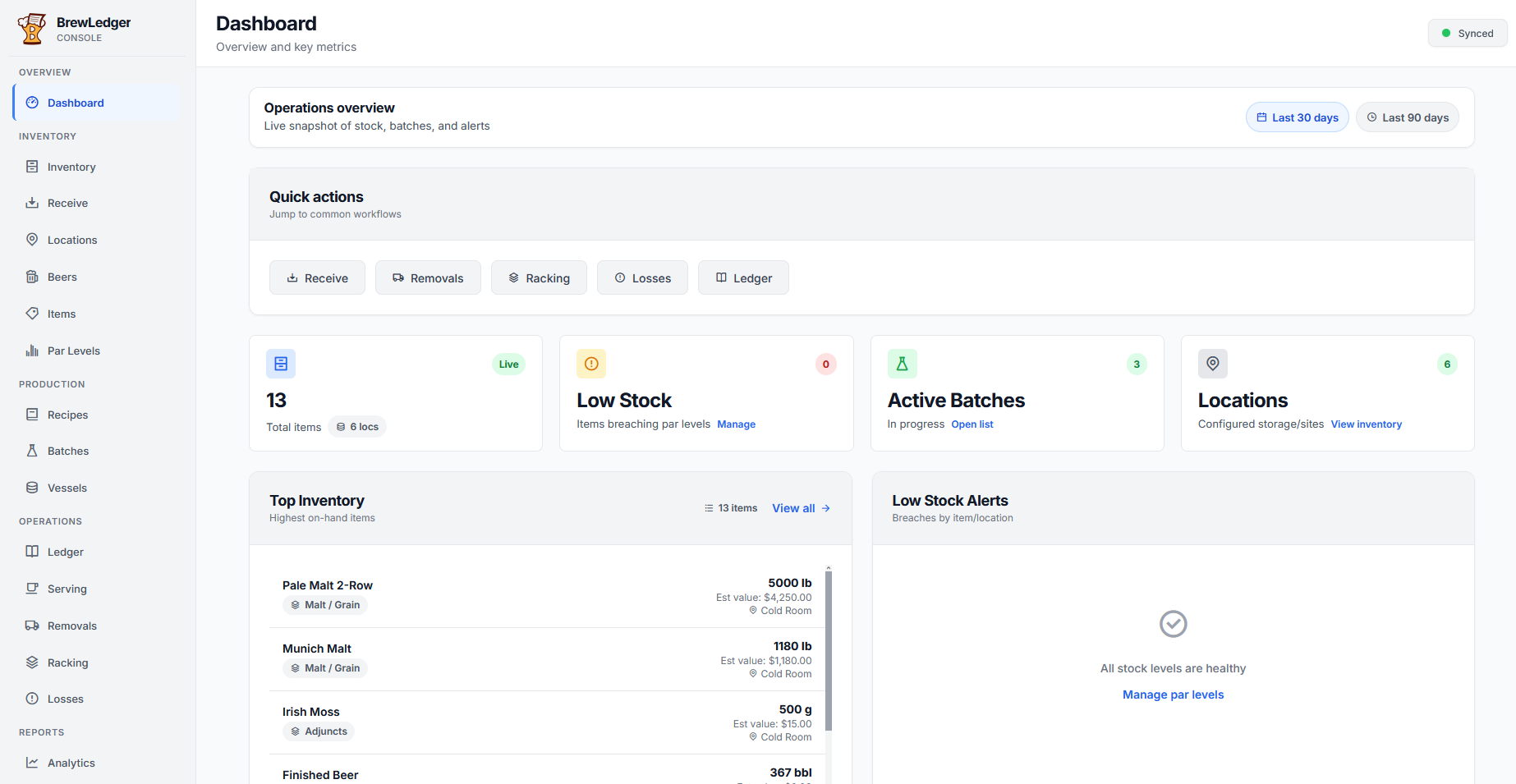

Desktop console

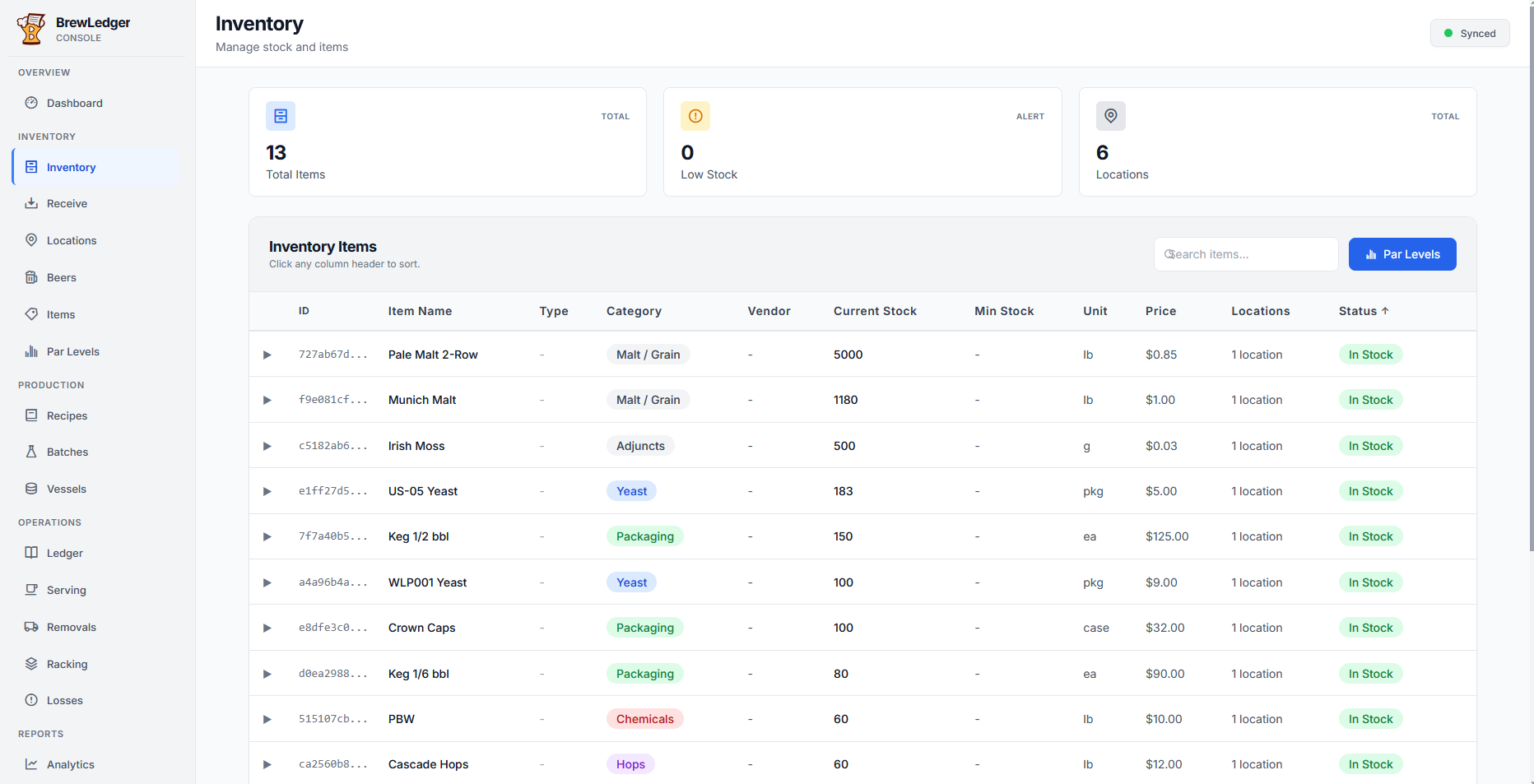

BrewLedger desktop batch management — Batch list — in-progress and finished sections with vessel volume tree

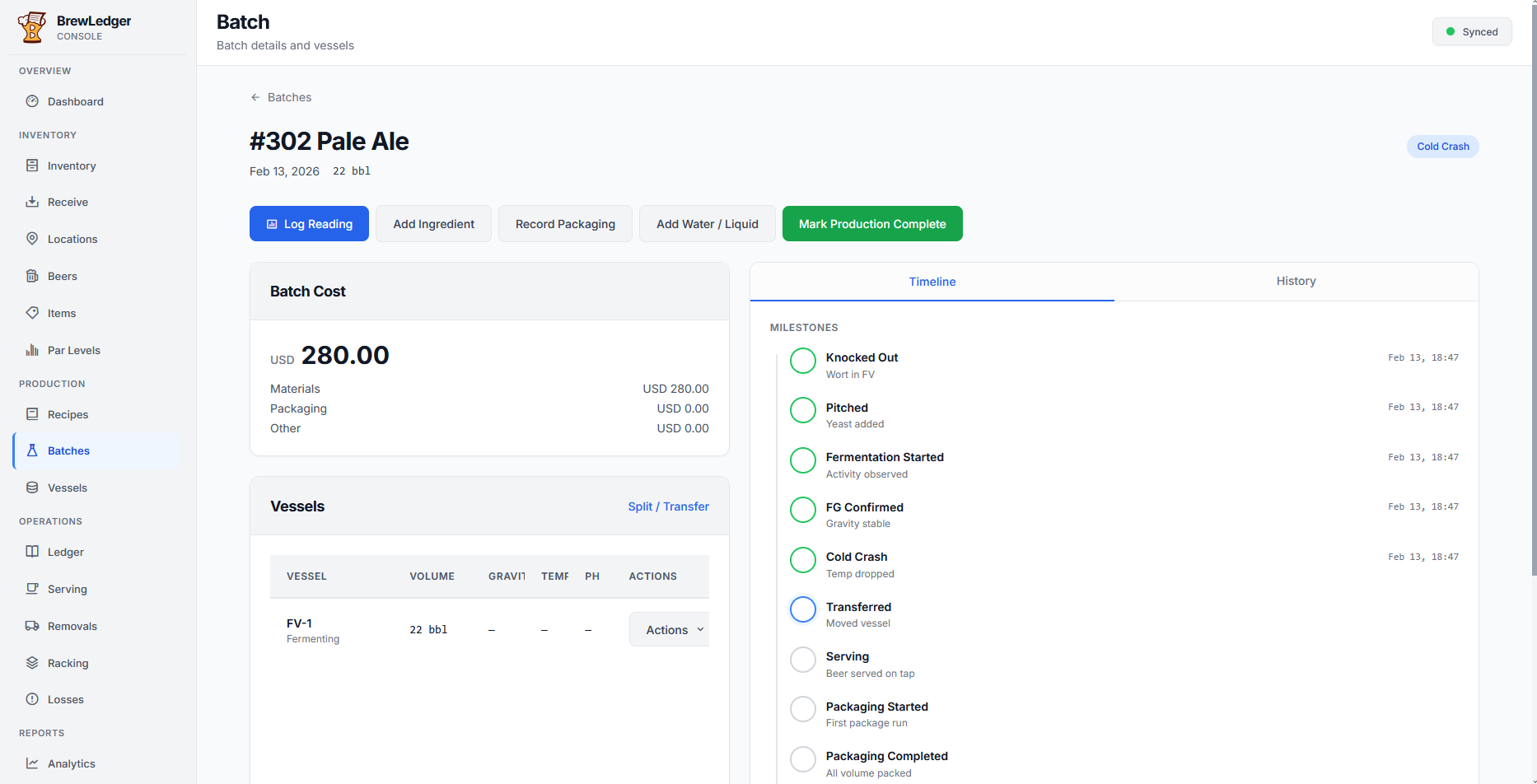

BrewLedger desktop ledger view — Ledger view — append-only transaction history with typed badges

Tech stack

Mobile: Vue 3, Vite, Tailwind CSS, Dexie.js (IndexedDB), Capacitor 6 (iOS/Android)
Console: Vue 3 SPA, same repository and sync layer, desktop-optimized UI components
Server: Express.js, SQLite, Stripe API, JWT-like token auth with bcrypt
Testing: Vitest + Supertest (backend), Vue Test Utils (frontend)

BrewLedger is a local-first system designed around an authoritative ledger. By separating mobile and desktop workflows, it aligns with the practical needs of brewery operations—providing the right tools for both the cellar and the office.
